Understanding Tensile Testing

Tensile testing is a fundamental method used to determine how materials react to forces that attempt to pull them apart. The test involves placing a specimen in a tensile testing machine, which gradually applies a uniaxial load until the sample breaks. During this process, key parameters such as stress, strain, and elongation are measured to provide insights into the material’s mechanical properties.

Key Properties Assessed:

• Ultimate Tensile Strength (UTS): The maximum stress a material can withstand before breaking.
• Yield Strength (YS): The stress at which a material begins to deform plastically.
• Elongation at Break: The strain or elongation a material undergoes before breaking.
• Modulus of Elasticity (Young’s Modulus): The ratio of stress to strain in the elastic region, indicating stiffness.

Why is Tensile Testing Important?

1. Material Selection: Engineers and designers rely on tensile testing data to select the most suitable material for their applications. Whether it’s metal, plastic, or composite, knowing the tensile properties ensures optimal performance under expected conditions.

2. Quality Control: Consistency is key in manufacturing. Tensile testing provides a benchmark for comparing production batches, ensuring that materials meet stringent quality standards.

3. Product Development: During the design phase, tensile testing helps in refining material formulations and improving product durability, contributing to innovations in product design.

4. Regulatory Compliance: Many industries have strict regulatory standards that materials must meet. Tensile testing helps manufacturers comply with these requirements, reducing the risk of product failure.

The Tensile Testing Process

1. Specimen Preparation:

   • The material is cut or shaped into a standardized specimen, typically following ASTM or ISO guidelines.
   • Common shapes include dog-bone (for metals) and rectangular bars (for plastics).

2. Test Setup:

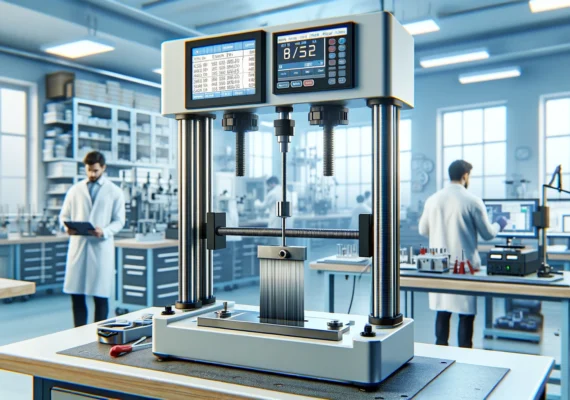

   • The specimen is securely clamped between two jaws in the tensile testing machine.
   • Extensometers or strain gauges are attached to measure elongation.

3. Loading:

   • A uniaxial tensile load is gradually applied until the specimen fractures.
   • Real-time data, such as load and displacement, is recorded.

4. Analysis:

   • The stress-strain curve is plotted to determine key properties like UTS, YS, and modulus.
   • Further analysis helps interpret the material’s behavior under stress.

Innovations in Tensile Testing

Modern tensile testing is no longer just about breaking samples. With the advent of advanced testing machines and software, the process has become more sophisticated.

• Digital Load Cells: Provide accurate force measurements and data logging.
• Non-Contact Extensometers: Offer precise strain measurements without influencing the specimen.
• Automated Testing: Reduces operator error and increases throughput with robotic sample handling.
