Di-Electric Constant Testing Services

The Bottleneck to Innovation: Di-Electric Constant Testing Services in India – Kiyo R&D Lab

Introduction

p>In the world of high-speed electronics, telecommunications, and power systems, nothing is more critical than the performance of insulating materials. These materials—often polymers, ceramics, or specialized fluids—aren't just passive barriers against electricity; they are active components that influence how signals travel, how much energy is stored, and ultimately, how safe and efficient a device is.

The key property that governs this behavior is the **Di-Electric Constant** (also known as relative permittivity). If this value is wrong, or if it shifts due to temperature or humidity, your circuit boards will fail, your cables will leak power, and your high-frequency signals will distort. For manufacturers in India competing in the global electronics and electrical markets, relying on accurate Di-Electric constant testing services in india – Kiyo R&D Lab is absolutely non-negotiable. We provide the precise electrical characterization needed to secure compliance, guarantee performance, and drive the next generation of high-speed technology.

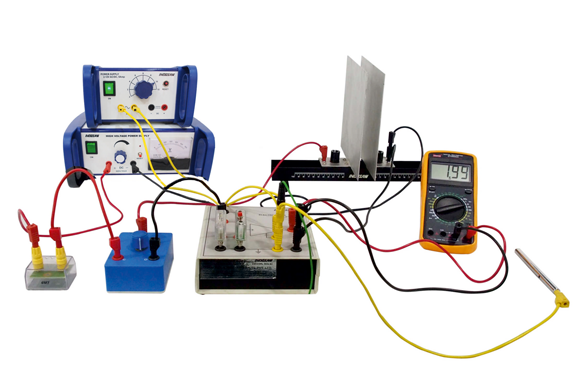

Certify Electrical Safety: Precision Di-Electric Constant Testing Services in India – Kiyo R&D Lab

What Exactly is the Di-Electric Constant ($\epsilon_r$)?

The Di-Electric Constant ($\epsilon_r$) is a fundamental electrical property of an insulating material. It quantifies the material’s ability to store electrical energy by polarizing its internal molecular structure when an electric field is applied. It is essentially **the ratio of electrical energy a material can store compared to a vacuum.**

Low $\epsilon_r$ (e.g., PTFE, air): These materials are excellent insulators and are crucial for minimizing signal delay, preventing cross-talk, and ensuring clean data transmission in high-speed circuits (PCBs) and cable jackets.

High $\epsilon_r$ (e.g., Ceramics): These materials are needed to maximize energy storage efficiency in components like capacitors, allowing them to be smaller and more powerful.

If the measured dielectric constant of a component deviates even slightly from the design specification, the entire device—from a 5G antenna to an automotive sensor—will malfunction.

The Critical Data: Why Dielectric Testing Matters

Dielectric constant testing is far more complex than a simple conductivity check. It provides critical, application-specific data that must be measured precisely under controlled environmental conditions.

1. Guaranteeing Signal Integrity (High Frequency)

In modern computing and telecommunications, signals travel at high frequencies. A material with the wrong dielectric constant slows down the signal propagation speed, causing delays, impedance mismatch, and data corruption. Accurate measurement ensures high-frequency signals are clean and fast.

2. Environmental Dependency: The Indian Climate Challenge

The dielectric constant is highly sensitive to external factors, making verification in diverse climates essential:

  • Temperature Sensitivity: For many common polar polymers (like Nylon), the constant can increase significantly with temperature, making **Di-Electric constant testing services in india** crucial given the region’s intense heat.
  • Moisture Absorption: Water absorbed by the material drastically increases the dielectric constant, leading to device failure and power loss in highly humid coastal and monsoon climates.
  • Frequency Variation: Testing must be performed across the material’s operational frequency range (from low power to high RF) as the constant changes with frequency.

Key Test Methods at Kiyo R&D Lab (ASTM D150, IEC)

To provide actionable and reliable data, Kiyo R&D Lab uses highly advanced instrumentation, ensuring accurate measurement across varying conditions, typically adhering to standards like **ASTM D150** and **IEC 62631**.

1. Parallel Plate Capacitance Method

This method forms the core of dielectric testing:

  1. Setup: A prepared material sample (usually a plaque) is placed between two metallic electrodes.
  2. Measurement: The system measures the capacitance of the plates first with the material, and then with air (or vacuum).
  3. Calculation: The ratio of these two measurements yields the exact dielectric constant ($\epsilon_r$) of the material at the tested frequency.

2. Frequency and Temperature Sweeps

We provide a full performance map, not just a single data point:

  • Process: The material is tested while the temperature is ramped up (simulating operating heat) or while the signal frequency is varied (simulating high-speed data transfer).
  • Purpose: This testing identifies dangerous thermal and frequency instability points where the material loses its designed electrical properties.

The Kiyo R&D Lab Advantage for Electrical Testing

For industries in India requiring precise electrical characterization—from the aerospace sector to mass consumer electronics—Kiyo R&D Lab offers unparalleled reliability for **Di-Electric constant testing services in india**:

1. NABL / ISO 17025 Accreditation: Absolute Trust

Our lab operates under the highest international standard of quality management (NABL/ISO 17025). This guarantees that our measurement protocols, equipment calibration, and data traceability are globally accepted, giving your products a decisive edge in international markets.

2. Specialized Polymer and Electrical Expertise

We specialize in polymer materials. Our experts understand how polymer purity, filler content, and moisture absorption directly influence the dielectric constant, allowing us to provide **consultative analysis** that links electrical performance back to material chemistry.

3. Integrated Cross-Disciplinary Testing

Kiyo R&D Lab can easily integrate dielectric testing with **Thermal Stability Analysis (TGA/DSC)** to determine the thermal limits of the insulator, and **Environmental Testing** to check stability under high humidity, providing a complete, holistic performance profile.

4. Compliance and Safety Focus

We ensure your materials meet the insulating properties required by national and international safety regulations, minimizing the risk of electrical shorts, fire hazards, and liability issues in the final product.

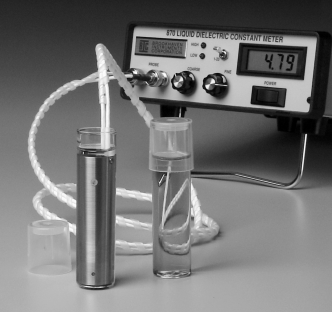

Certify Electrical Safety: Precision Di-Electric Constant Testing Services in India – Kiyo R&D Lab

Conclusion

In the era of 5G, electric vehicles, and compact electronics, the performance of dielectric materials is the bottleneck to innovation. Guessing the Di-Electric Constant of your insulator is an unacceptable risk that leads to signal failure, device malfunction, and safety hazards.

By choosing Di-Electric constant testing services in india – Kiyo R&D Lab, you secure verifiable scientific proof that your materials are electrically sound, thermally stable, and ready to power the next generation of technology.
