SEM and EDS Analysis Lab in India

Unlocking Material Mysteries: SEM and EDS Analysis Lab in India by Kiyo R&D Center & Laboratory

Introduction

In the ever-evolving world of materials science, understanding the fine details of a material’s structure and composition is crucial for innovation, quality control, and failure analysis. At Kiyo R&D Center & Laboratory, we specialize in delivering Scanning Electron Microscopy (SEM) and Energy Dispersive X-ray Spectroscopy (EDS) services—two of the most powerful tools in modern materials characterization.

What is SEM and EDS?

SEM (Scanning Electron Microscopy) is a technique that produces highly magnified images of a sample’s surface topography. Unlike optical microscopes, SEM offers much higher resolution, revealing intricate surface features at the micro and nanoscale.

EDS (Energy Dispersive X-ray Spectroscopy) is often coupled with SEM. It detects and identifies the elemental composition of the materials under investigation, providing a comprehensive understanding of the material’s chemistry.

Together, SEM and EDS help answer critical questions about material behavior, defects, and composition.

Why Choose Kiyo R&D for SEM and EDS Analysis?

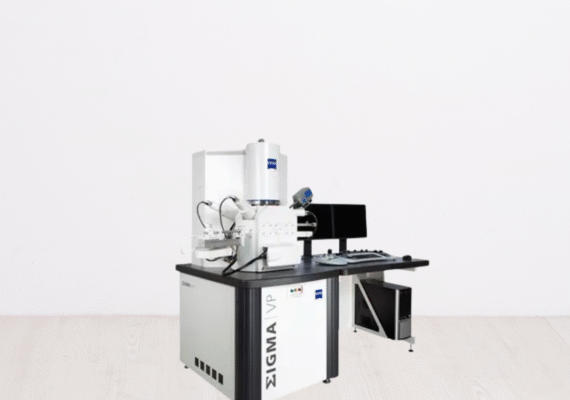

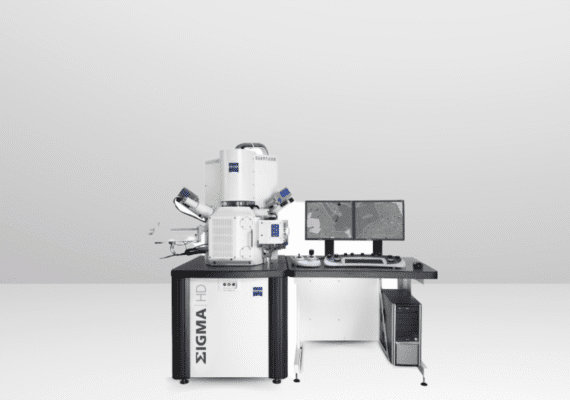

High-Resolution Imaging: We use advanced SEM systems to capture ultra-detailed surface structures.
Precise Elemental Analysis: Our EDS capabilities ensure accurate detection of even trace elements.
Versatility Across Materials: Whether it’s plastic, rubber, metal, or composite—our lab is equipped to analyze a wide range of materials.
Failure Analysis Support: We help clients identify root causes of material failure with microscopic and chemical insights.
Research and Development Aid: Academic institutions and R&D teams trust us for insightful data in product and process development.

Applications of SEM and EDS

Failure analysis of industrial components
Contaminant identification in polymers
Coating and surface treatment evaluations
Microstructural studies for product development
Quality assurance and control

Your Trusted Testing Partner in India

Located in India, Kiyo R&D Center & Laboratory proudly supports industries including automotive, aerospace, electronics, plastics, and more. Our commitment to accuracy, transparency, and timely reporting makes us a preferred partner for advanced materials testing. If you are looking for dependable SEM and EDS analysis, we invite you to enquire now and experience the expertise that sets Kiyo R&D apart.

FAQ

1. What is SEM analysis and why is it used?

SEM (Scanning Electron Microscopy) is a technique that produces high-resolution images of a material’s surface. It’s used to examine surface features, detect defects, and analyze microstructures at very high magnification.

2. What does EDS analysis do?

EDS (Energy Dispersive X-ray Spectroscopy) is used alongside SEM to identify the elemental composition of a sample. It helps detect impurities, confirm material types, and assess elemental distribution.

3. What types of materials can be analyzed with SEM and EDS?

Kiyo R&D can analyze a wide range of materials including plastics, rubbers, metals, composites, ceramics, and coatings.

4. What industries benefit from SEM and EDS testing?

Industries like automotive, aerospace, electronics, packaging, medical devices, and manufacturing regularly use SEM and EDS for quality control, failure analysis, and product development.
