“Surface Resistivity Testing on Electrical Properties "

“Get Certified Surface Resistivity Testing Services in India – Kiyo R&D Lab”

Introduction

Tiny static charges can cause outsized problems—damaging microelectronics, attracting contaminants to packaging, and triggering intermittent field failures. Businesses that handle ESD-sensitive components depend on reliable electrical properties to keep quality high and returns low. That’s where Surface Resistivity Testing on Electrical Properties Services in India – Kiyo R&D Lab comes in: a practical, standards-aligned pathway to data you can trust.

Plain-English definition: Surface resistivity describes how strongly a material resists electrical current flowing across its surface, expressed in ohms per square (Ω/□).

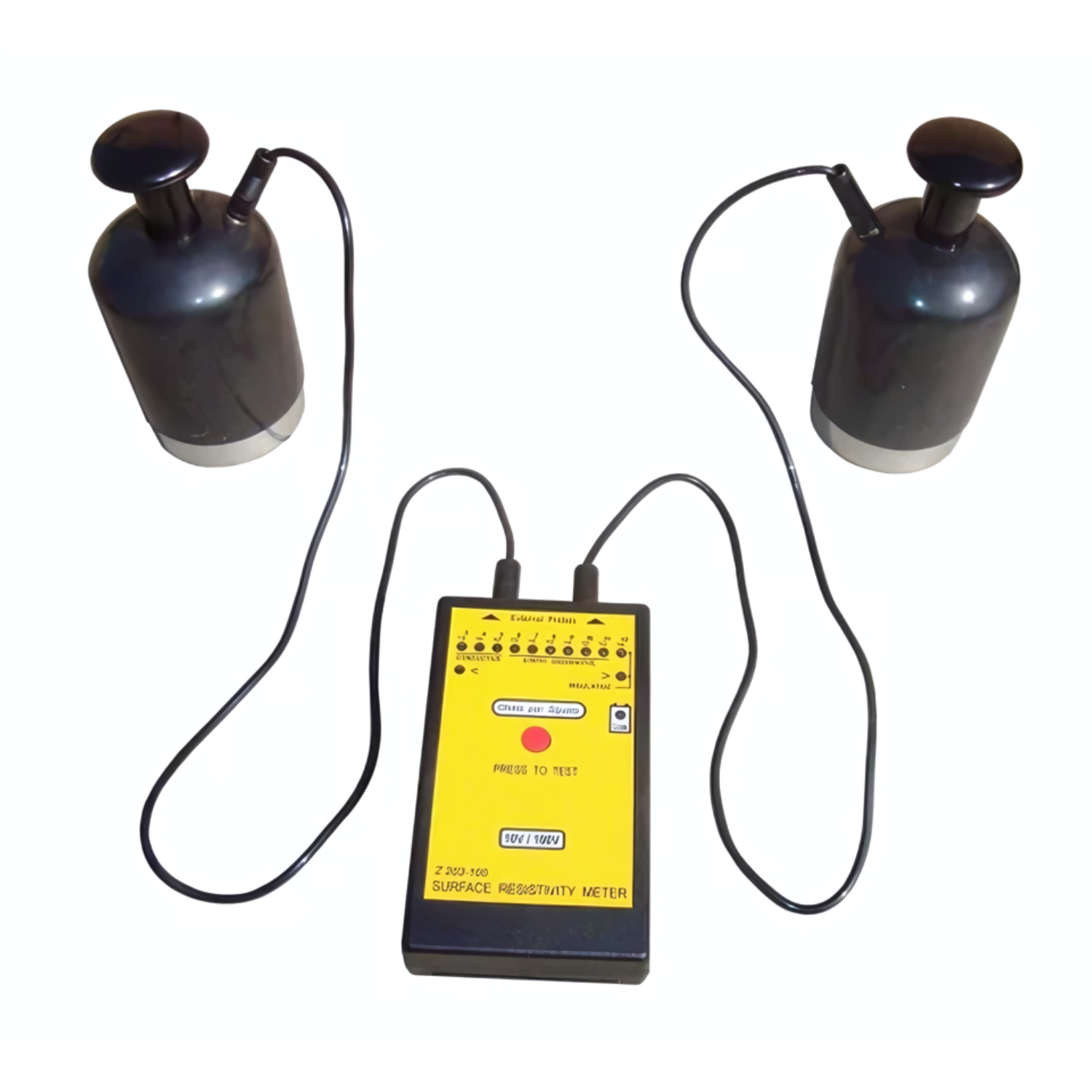

“Surface Resistivity Testing Services in India – Trusted ESD Testing by Kiyo R&D Lab”

What Is Surface Resistivity?

Materials fall into three broad categories based on surface resistivity: conductive (discharges quickly), static-dissipative (controlled bleed-off), and insulative (holds charge). The right category depends on your application—tray inserts for PCBs might require a dissipative range, while shielding bags lean more conductive.

Conductive

Provides fast pathways to ground—useful for shielding and grounding surfaces.

Static-Dissipative

Controls charge decay to avoid sudden discharge; common for ESD mats and handling trays.

Insulative

Retains charge; often needs coatings, additives, or special handling to reduce risk.

How Surface Resistivity Maps to Electrical Properties

Surface resistivity is one of several electrical properties engineers monitor, alongside surface resistance, volume resistivity, dielectric strength, and charge decay time. The parameter you choose should reflect your environment, part geometry, and qualification standard.

  • Surface resistance (Ω): The measured resistance between two electrodes across a surface—used to calculate Ω/□.
  • Volume resistivity (Ω·cm): Current through thickness; critical for bulk materials and thick sections.
  • Charge decay / half-life: Time for a charged surface to drop to a defined fraction; practical view of ESD safety.
Tip: Share your target window (e.g., 10^6–10^9 Ω/□) and application. It helps tailor electrode type, conditioning, and acceptance criteria.

Why Surface Resistivity Testing Matters

Without verified electrical properties, ESD controls become guesswork. Accurate testing helps you:

  • Prevent latent damage that escapes end-of-line tests but fails in the field.
  • Qualify suppliers and incoming lots against objective criteria.
  • Meet standards like ASTM D257 and relevant IEC/ANSI/ESD methods.
  • Document compliance for audits, certifications, and customer requirements.

Surface Resistivity Testing on Electrical Properties Services in India – Why Kiyo R&D Lab

Advanced, Calibrated Instrumentation

We measure across wide resistivity ranges using calibrated meters and appropriate electrode fixtures, enabling confidence from highly conductive to highly insulative materials.

Standards-Driven Methods

Methods align to ASTM D257 and applicable IEC/ANSI/ESD standards, with environmental conditions (temperature, RH) recorded for traceability and repeatability.

Clear, Actionable Reporting

Reports include raw values, conditions, classification (conductive/dissipative/insulative), and interpretation mapped to your specifications—no jargon, just decisions.

Consultative Support

Our engineers help you choose materials, compare formulations, or optimize packaging designs to hit your electrical property targets reliably.

Need a quote or sample list? We tailor test plans for your parts, packaging, or materials.

Request Testing

Our Testing Process

  1. Sample Intake & Documentation: We log samples with complete traceability and note application targets.
  2. Conditioning: Samples are conditioned at specified temperature and relative humidity to stabilize readings.
  3. Calibration Check: Instruments and electrodes are verified before measurement.
  4. Measurement: Surface resistance is measured to calculate Ω/□, using the correct electrode geometry and pressure.
  5. Classification & Analysis: Results are compared to your acceptance windows and relevant standards.
  6. Reporting: You receive an audit-ready report with methods, results, classification, and recommendations.

Industries We Serve

  • Electronics & Semiconductors: PCB handling, IC trays, workstation mats, and shielding solutions.
  • Automotive & EV: Sensors, harnesses, modules, and battery-adjacent components.
  • Pharma & Medical: Clean packaging where static can attract particles or compromise sterility.
  • Aerospace & Defense: Materials qualified for mission-critical environments.
  • Plastics & Polymers: Compounds and coatings engineered to specific Ω/□ windows.
  • Logistics & Packaging: ESD-safe cartons, foams, and films for safe transport.

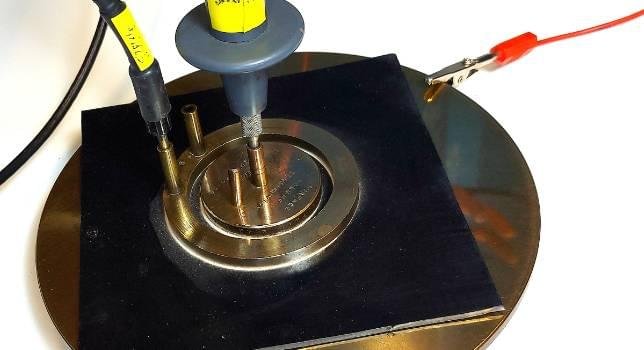

“Surface Resistivity Testing Services in India – Trusted ESD Testing by Kiyo R&D Lab”

Conclusion

In conclusion, the realm of polymer testing services is indispensable in the ever-evolving domain of material science. Businesses can fortify their products by investing in mechanical, chemical, and thermal analyses, leveraging microscopic and molecular insights, and embracing comprehensive testing services for a robust foundation in quality assurance and innovation. As industries continue to push boundaries, the role of polymer testing services remains paramount in ensuring the integrity and performance of diverse materials.

FAQ

How is surface resistivity different from volume resistivity?

Surface resistivity measures charge movement across a material’s surface, while volume resistivity measures through its thickness. Applications and fixtures differ for each.

What standards do you follow?

We commonly reference ASTM D257 and applicable IEC/ANSI/ESD methods, and we’ll align with any client-specific standard upon request.

What information should I include with my samples?

Material type, thickness, intended use, target resistivity range, and any acceptance criteria or referenced standards.
