Limited Oxygen Index Testing As Per ISO 4589-2

What is Limited Oxygen Index (LOI) Testing?

The Limited Oxygen Index (LOI) test is a standardized method used to determine the flammability characteristics of polymeric materials. It measures the minimum concentration of oxygen that supports combustion in a controlled environment. LOI is expressed as a percentage and is an essential indicator of a material’s fire retardancy. The higher the oxygen index, the greater the flame resistance of the material.

This method, as outlined in ISO 4589-2, is widely adopted in safety-critical industries such as aerospace, automotive, construction, and electronics, where materials must resist ignition and slow down the spread of flames.

Why ISO 4589-2 Matters

ISO 4589-2:2017 specifies methods for determining the minimum oxygen concentration that will support combustion of small test specimens in a mixture of oxygen and nitrogen at ambient temperature. This international standard ensures consistency and reliability in testing procedures across laboratories.

By adhering to ISO 4589-2, manufacturers can ensure their materials meet global regulatory requirements, enhance safety profiles, and maintain product credibility in markets with strict fire safety standards.

Step-by-Step Procedure of the LOI Test

At Kiyo R&D Center and Laboratory, the LOI test is conducted with precision and accuracy, following this standardized procedure:

1. Sample Preparation: Specimens are cut into rectangular bars, typically 80–150 mm long and 10 mm wide, with thickness based on material type.

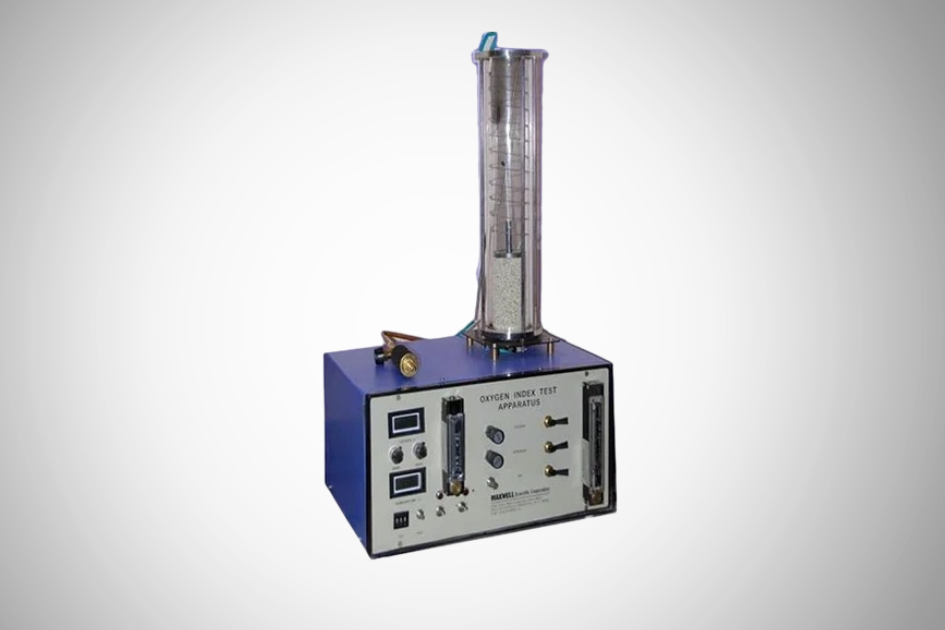

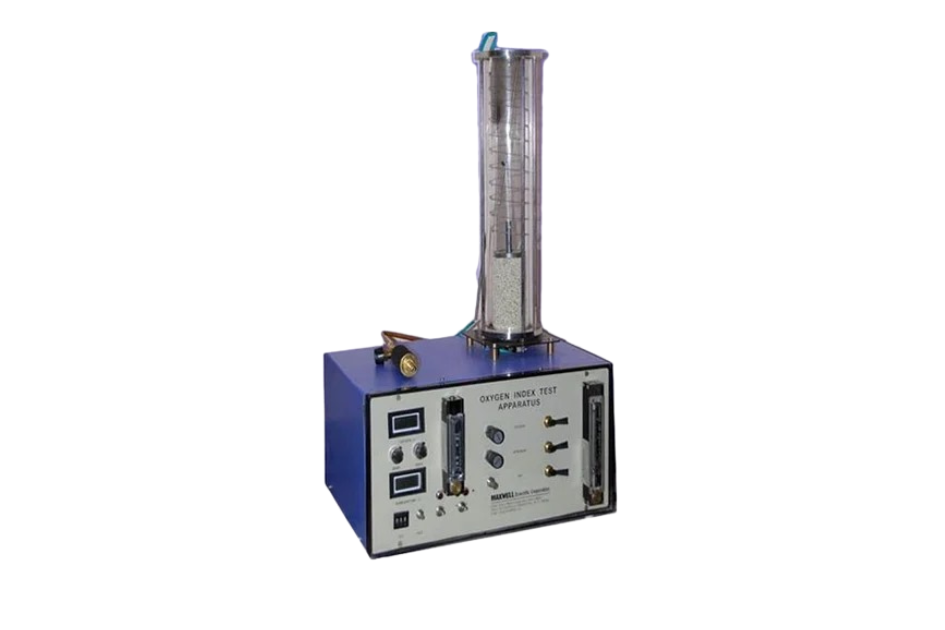

2. Test Setup: The sample is vertically mounted in a transparent chimney apparatus. A calibrated mixture of oxygen and nitrogen flows through the chamber.
3. Ignition: A small pilot flame is applied to the top of the specimen. Observers note whether the sample sustains burning or extinguishes.
4. Oxygen Adjustment: The oxygen concentration is varied in increments to determine the lowest percentage that supports steady combustion.
5. Calculation: The final LOI value is calculated and recorded, providing a benchmark for the material’s flammability rating.

Interpreting LOI Results

Materials with LOI values above 21% (ambient air oxygen concentration) are considered less flammable. The general interpretation is as follows:

• LOI < 21%: Highly flammable
• LOI 22% – 25%: Moderately flame-retardant
• LOI ≥ 26%: Self-extinguishing under normal atmospheric conditions

Such categorization aids in material selection for applications where fire resistance is critical.

Industry Applications of LOI Testing

LOI testing is vital across various sectors:

• Automotive: Ensuring dashboard materials, seat foams, and insulations meet safety criteria.
• Construction: Validating the flame resistance of insulation boards, wall panels, and ceiling tiles.
• Electronics: Testing plastic casings, circuit board laminates, and cable jackets for fire safety compliance.
• Aerospace: Evaluating the fire behavior of lightweight composite materials used in cabins and components.
• Textiles: Analyzing curtain fabrics, upholstery, and protective clothing for fire retardancy.

Why Choose Kiyo R&D Center and Laboratory for Limiting Oxygen Testing in Chennai?

Kiyo R&D Center and Laboratory is a leader in providing advanced flammability and material testing services, and we are recognized for our excellence in limiting oxygen testing in Chennai. Here’s why industries trust us:

• ISO-Compliant Testing: We follow ISO 4589-2 standards rigorously, ensuring accurate and reliable results.
• Advanced Facilities: Our lab is equipped with state-of-the-art oxygen index testers and automated data logging systems.
• Expertise: Our team comprises polymer scientists and fire safety engineers with deep experience in flammability behavior.
• Customized Support: We offer consultation on improving material formulations for enhanced flame resistance.
• Fast Reporting: Get prompt, actionable test reports with detailed insights into your material’s performance.

Serving Chennai’s Growing Industrial Hub

As Chennai emerges as a manufacturing powerhouse for sectors like electronics, automotive, defense, and aerospace, the need for dependable material testing grows exponentially. Our services cater to startups, SMEs, and large manufacturers who prioritize quality and compliance.

Kiyo R&D Center and Laboratory plays a pivotal role in providing limiting oxygen Index testing in Chennai, helping businesses enhance fire safety, meet legal standards, and build safer products for global markets.

How to Get Your Material Tested

Getting started with our testing services is easy:

1. Find Us: Search for “Kiyo R&D Center and Laboratory” online to access our official website or directory listings.
2. Submit Samples: Prepare samples as per ISO 4589-2 size and shape specifications.
3. Receive Results: Our team performs thorough testing and delivers comprehensive reports.
